E Class

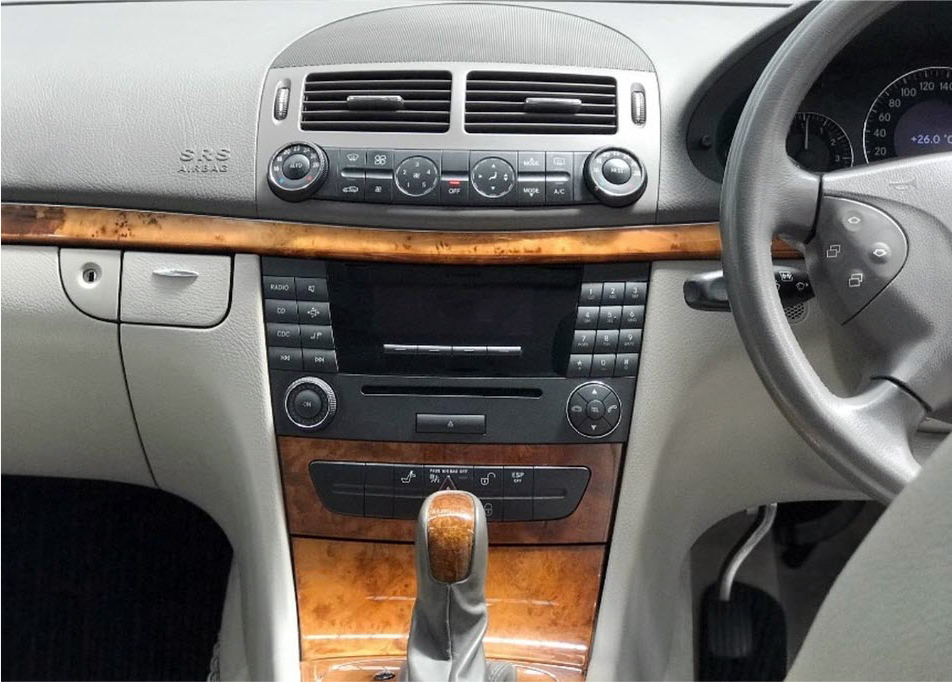

This system can easily be identified by the following features:-

• The system does not have a factory colour screen
• It does not have factory navigation
• It is a basic Radio / CD Player
• It looks like the picture

This system was found in vehicles from 2004 til 2008 and can easily be identified by the following features:-

• The system has a factory colour screen
• It came with factory navigation
• It looks like the picture

This system was found in vehicles from 2008 and can easily be identified by the following features:-

• The system has a factory colour screen
• It came with factory navigation
• It has an SD Card Slot above the CD Slot
• It looks like the picture

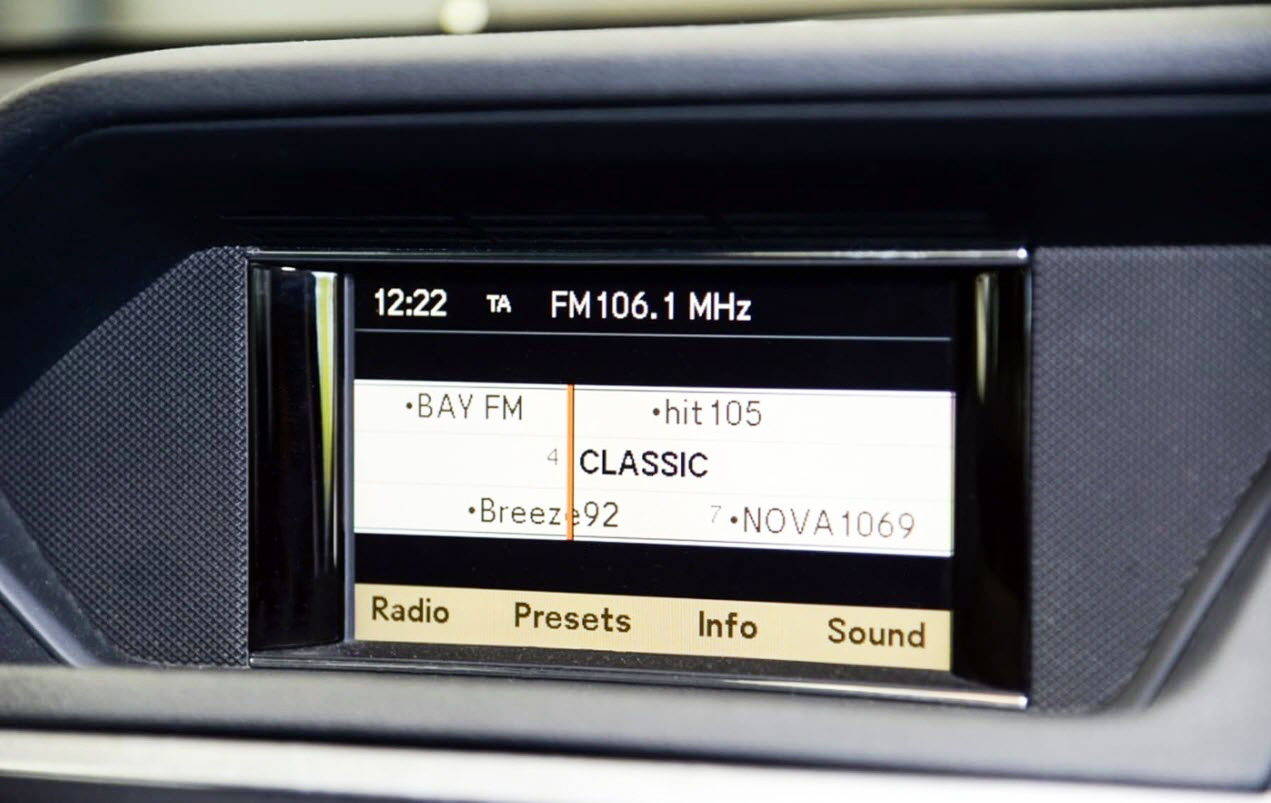

This system was found in early model W212 and W207 E Class vehicles and can be identified by the following features:-

• It has a low resolution 5.8 Inch Screen
• There is no SD Card Slot on the front of the radio panel
• The button below the Radio button is a Music Button not a Navi button as Highlighted in this image - Click Here

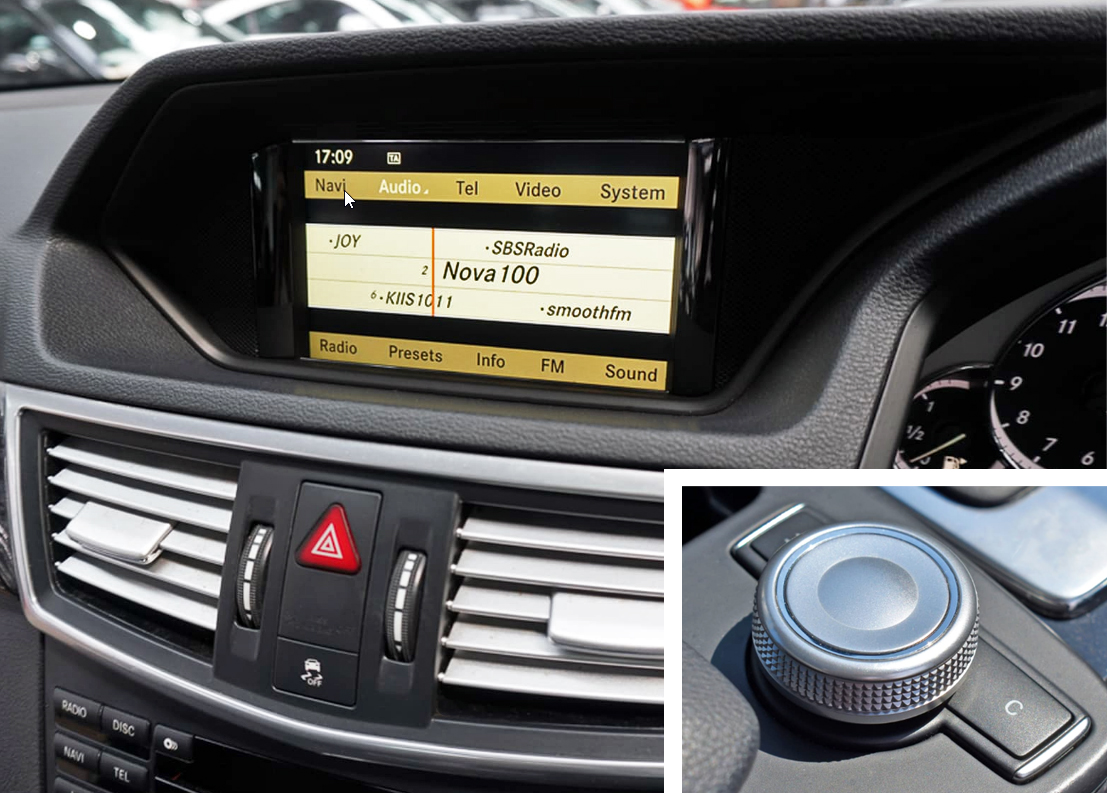

This system was found in early model W212 and W207 E Class vehicles and can be identified by the following features:-

• It has a high resolution 7 Inch Screen
• There is no SD Card Slot on the front of the radio panel
• The button below the Radio button is a Navi Button not a Music button as Highlighted in this image - Click Here

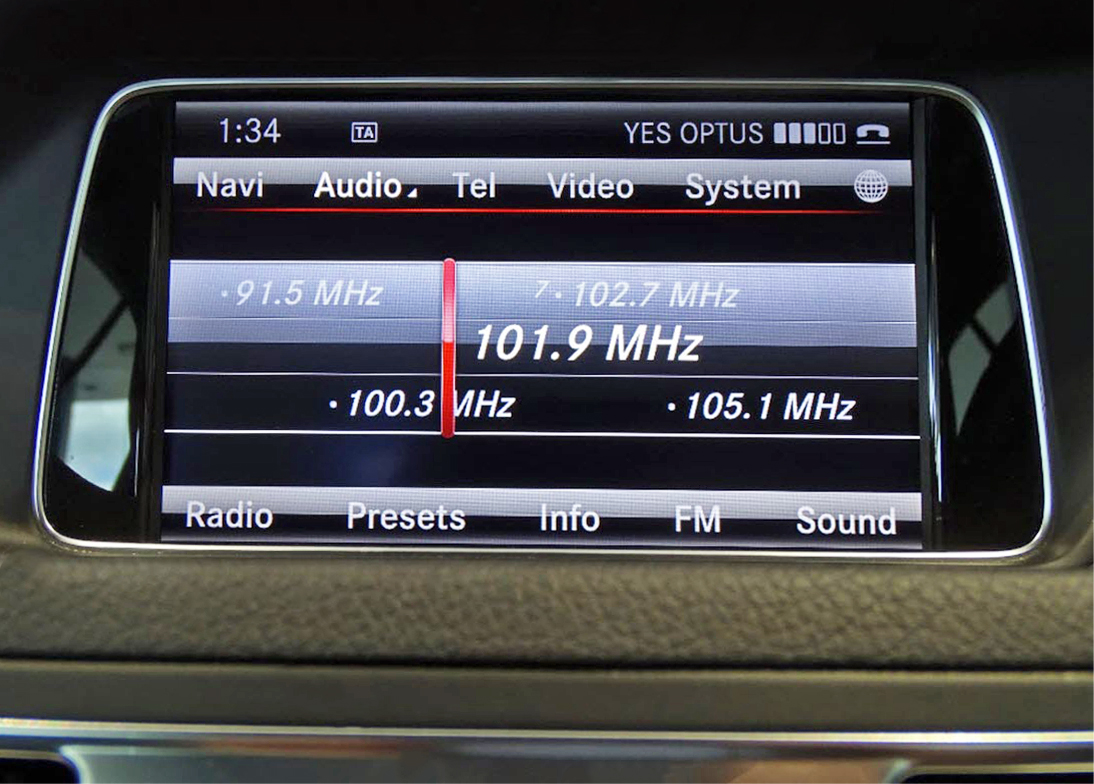

This system was found in W212 and W207 E Class vehicles and can be identified by the following features:-

• It has a high resolution 7 Inch Screen
• NTG4.5 has a Yellow User Interface similar to the NTG4 System
• NTG4.7 has an updated user interface like the picture
• There is an SD Card Slot on the front of the radio panel below the left arrow - as Highlighted in this image - Click Here
• The Command Controller on the centre console looks like this - Click Here

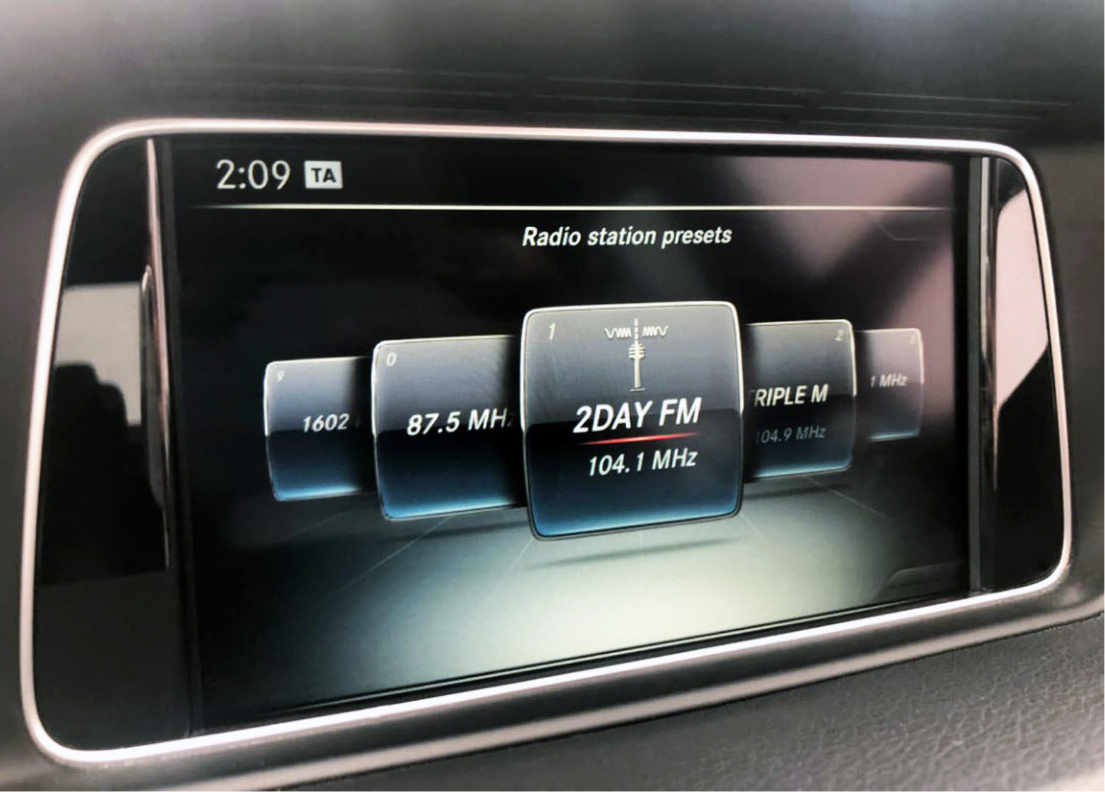

This system was found in later model W212 and W207 E Class vehicles and can be identified by the following features:-

• It has a high resolution 7 Inch Screen
• There is an updated user interface that looks like the image (right)
• The radio panel is different to the NTG4.5 system and looks like this - Click Here
• The Command Controller on the centre console has an off button in the bottom right corner - Click Here
